How to Add And Simulate Ultrasonic Sensor Library to Proteus

An ultrasonic sensor is an instrument that measures the distance to an object using ultrasonic sound waves.

An ultrasonic sensor uses a transducer to send and receive ultrasonic pulses that relay back information about an object’s proximity.


 download ckt and code..

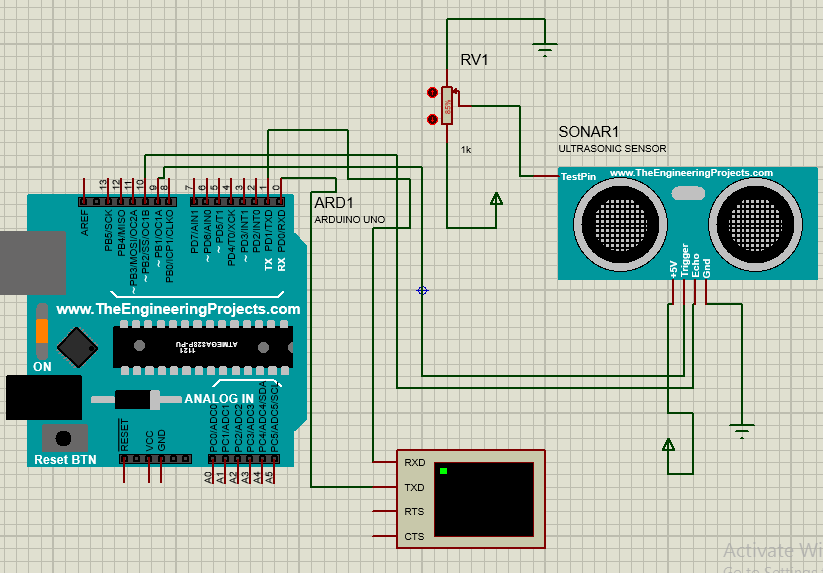

ckt.



watch video for more information..


code..

// defines pins numbers

const int trigPin = 9;

const int echoPin = 10;



// defines variables

long duration;

long distance;


void setup() {

pinMode(trigPin, OUTPUT); // Sets the trigPin as an Output

pinMode(echoPin, INPUT); // Sets the echoPin as an Input

Serial.begin(9600); // Starts the serial communication

}



void loop() {

// Clears the trigPin

digitalWrite(trigPin, LOW);

delayMicroseconds(2);



// Sets the trigPin on HIGH state for 10 micro seconds

digitalWrite(trigPin, HIGH);

delayMicroseconds(10);

digitalWrite(trigPin, LOW);



// Reads the echoPin, returns the sound wave travel time in microseconds

duration = pulseIn(echoPin, HIGH);



// Calculating the distance

distance= duration*0.034/2;


  Serial.print(distance);

  Serial.println("  CM ");

}
